Product thermal capacity: 1 – 20 t/h
Working pressure: 0.7-2 MPa
Available fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
Email: zhulin@zozen.com

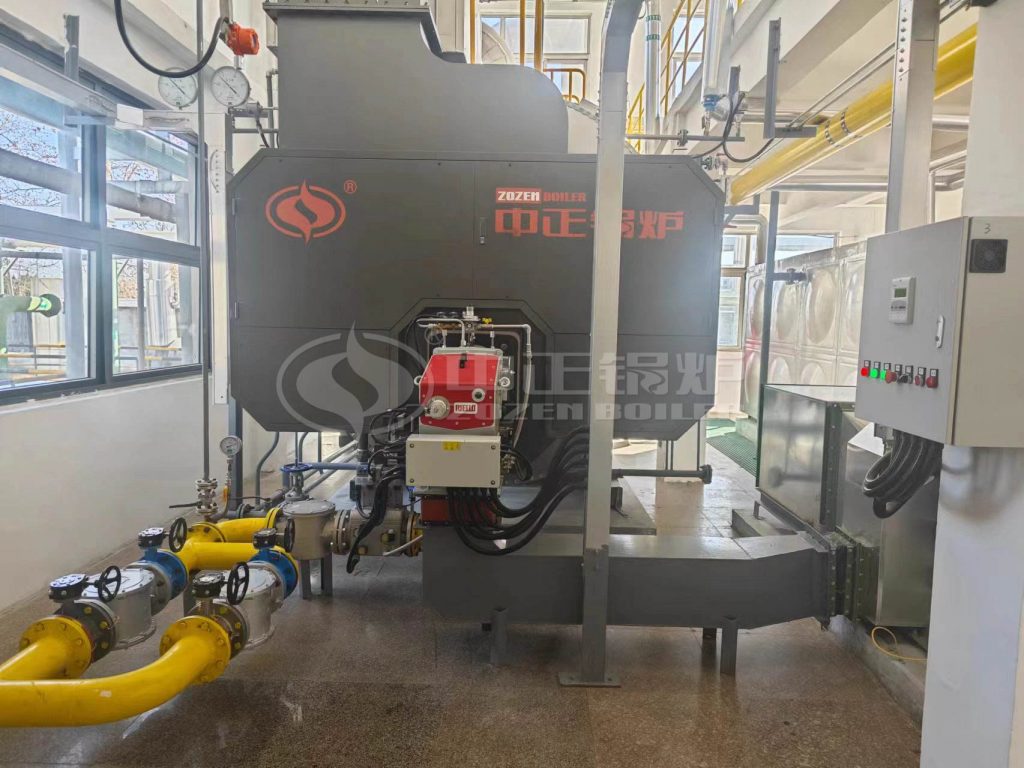

WNS Series 4 Ton Steam Boiler Introduction
The WNS series 4 ton steam boilers adopt a horizontal internal combustion wet-back structure with a compact and rational design. They utilize advanced three-pass flue gas flow technology and an optimized combustion system, ensuring a thermal efficiency of up to 98%, which significantly reduces energy consumption and operating costs. Made from high-quality materials resistant to high temperatures and corrosion, these boilers offer excellent durability and reliability, extending their service life while lowering maintenance costs.
The WNS series 4 ton steam boilers are equipped with an advanced fully automated control system, supporting intelligent operation and remote monitoring. They can monitor the boilers’ operating status in real-time, greatly enhancing convenience and operational safety. Additionally, the WNS series 4 ton steam boilers support multiple fuel types, including natural gas, light diesel, and heavy oil, making them adaptable to various industrial needs and application scenarios.
WNS Series 4 Ton Steam Boiler Advantage
High Efficiency and Energy Saving: The WNS series 4 ton steam boilers achieve a thermal efficiency of up to 98%, utilizing a three-pass structure and optimized combustion system to maximize heat utilization while reducing energy consumption and costs.
Superior Environmental Performance: Equipped with a low-NOx burner, the boilers minimize harmful emissions, meeting strict international environmental standards and helping enterprises achieve green production goals.
Intelligent Control: The fully automated control system supports real-time monitoring and remote operation, ensuring ease of use, operational safety, and reduced reliance on manual intervention.
Strong Versatility: The WNS series 4 ton steam boilers support multiple fuel types (natural gas, light diesel, heavy oil), making them suitable for various industries, including food processing, chemical production, textiles, and heating applications.
WNS Series 4 Ton Steam Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Feed water temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1.0 | 184 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1.0 | 184 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1.0 | 184 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1.0 | 184 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 104 | 52.0 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 104 | 52.0 | 8.55×3.90×4.15 |
